Too much repositioning
Multiple setups slow production and create opportunities for alignment issues.
Modular Workholding System
A STEP ABOVE
Holding
Higher
Standards
Designed to elevate your material off the machine table, providing greater cutter access and reducing the need for repositioning. Spend less time on setups and more time making chips. Less repositioning. More efficient setups. Greater productivity.
Improved Cutter Access
Fewer Repositions
Modular Design
MADE IN WISCONSIN
DESIGNED BY MACHINISTS
Designed by machinists. Built for production.
01 / THE CHALLENGE
The problem isn't the cut. It's the setup.
Traditional setups often require shimming, blocking, and repeated repositioning. Every additional setup costs valuable production time and introduces another opportunity for error.
Limited cutter access
Traditional workholding can restrict tool paths and limit accessible machining surfaces.
Lost production time
Time spent building complicated setups is time your spindle isn't making chips.
02 / THE SOLUTION
Elevate your workpiece. Open up possibilities.

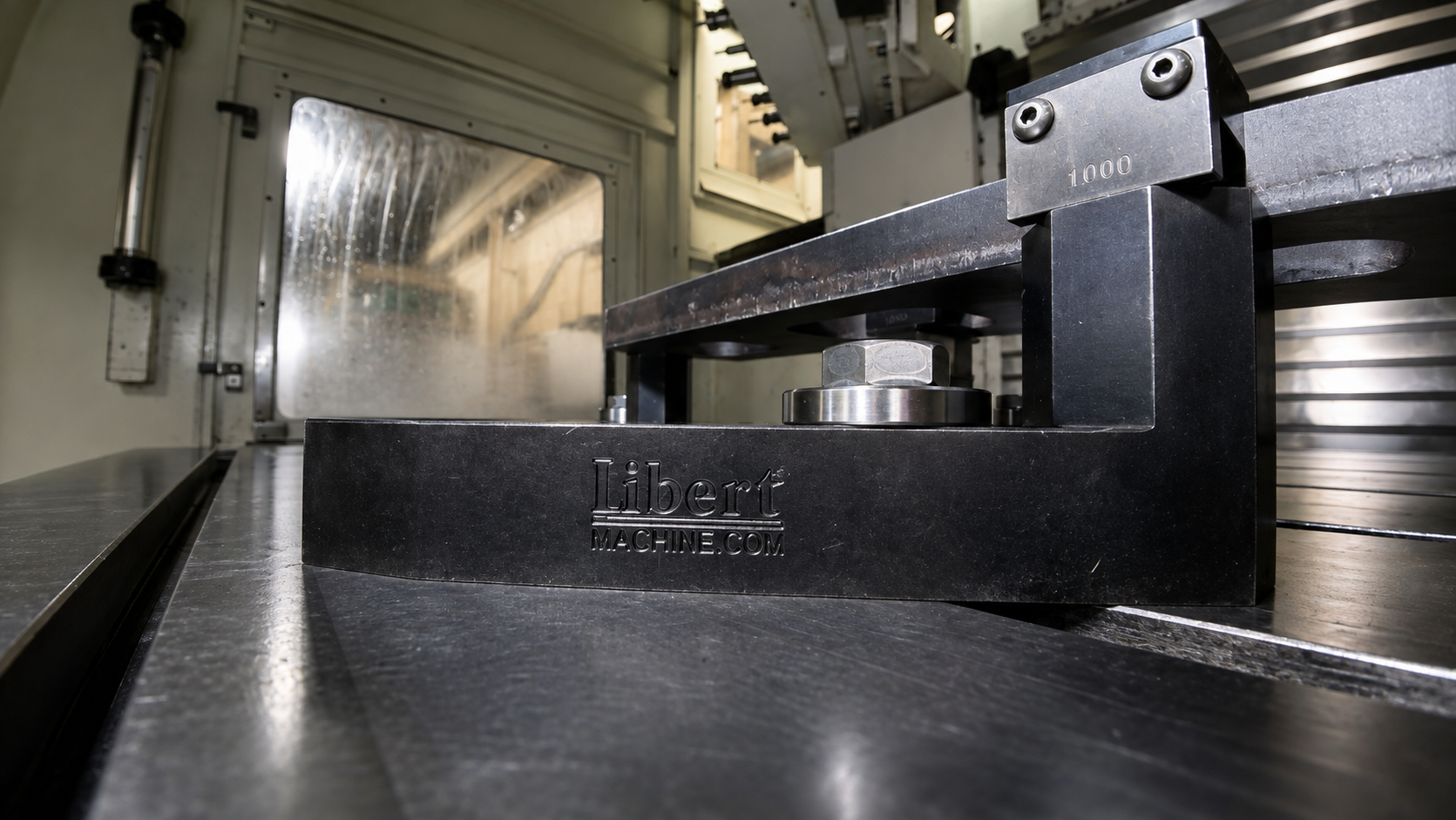

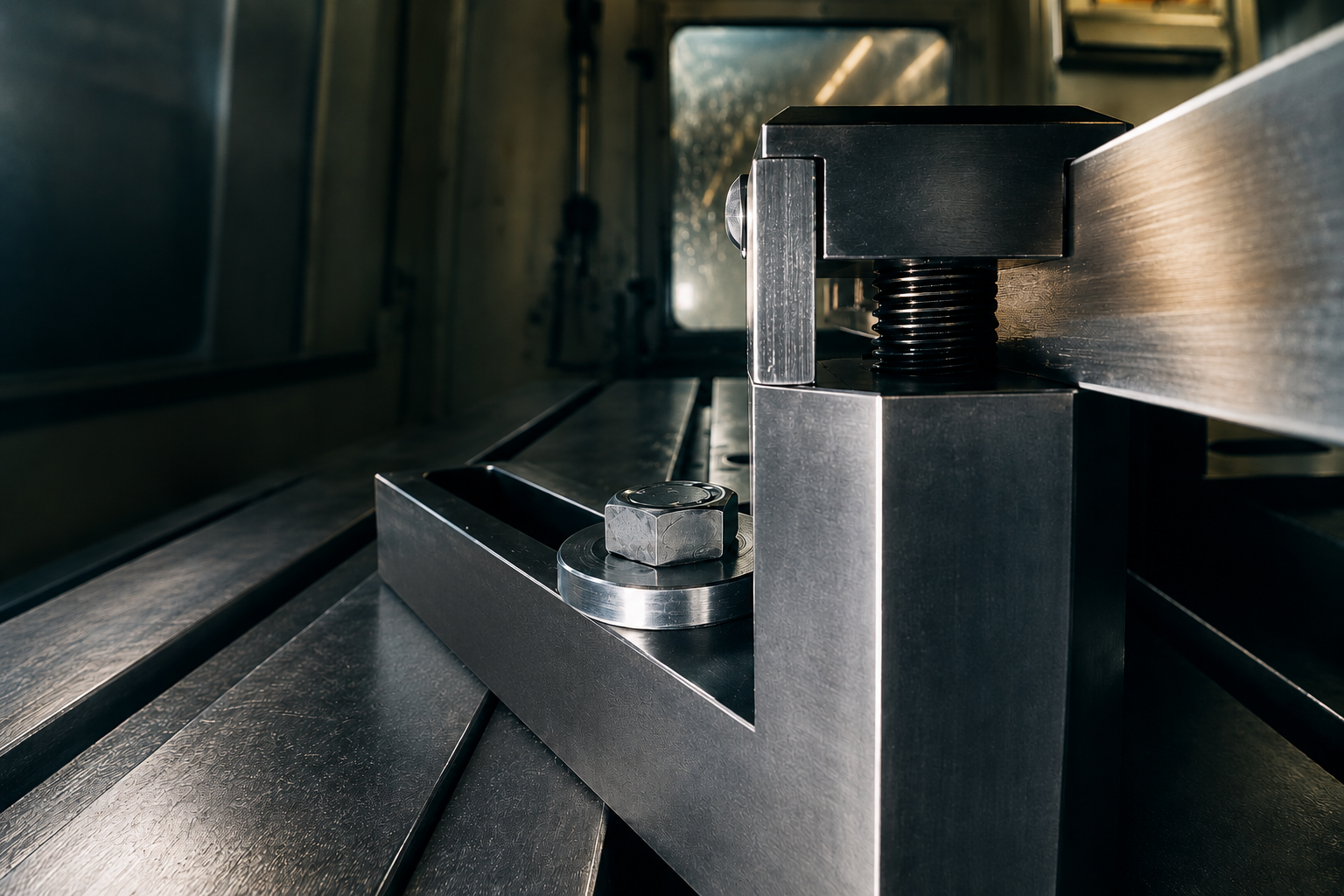

The Libert Elevation System raises your workpiece off the machine table, creating clearance underneath and around the part. Improve cutter access, reduce repositioning, and spend more time making chips.
Modular by design
Configure the system around your workpiece instead of adapting every job to fixed workholding.
Faster setups
Reduce shimming, blocking, and repeated positioning before machining begins.
Greater cutter access
Create the clearance needed to machine more surfaces before repositioning your workpiece.

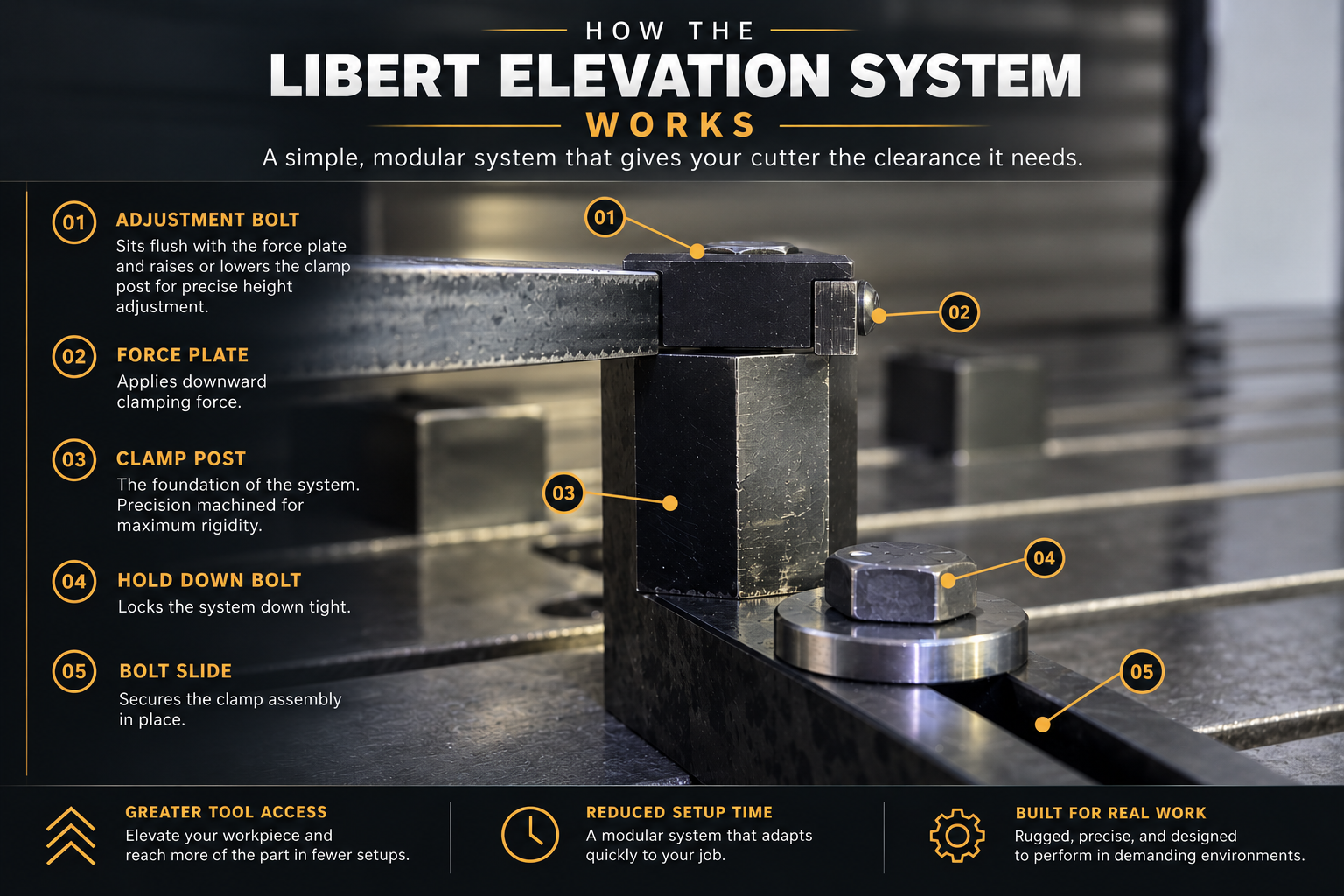

Understand the Libert Elevation System in Seconds
The Libert Elevation System is built around a simple but powerful concept: elevate the workpiece, improve cutter access, and reduce setup time.
03 / THE PROCESS
THREE STEPS. MORE POSSIBILITIES.
A straightforward approach to workholding. Configure your system, secure your workpiece, and get to machining.

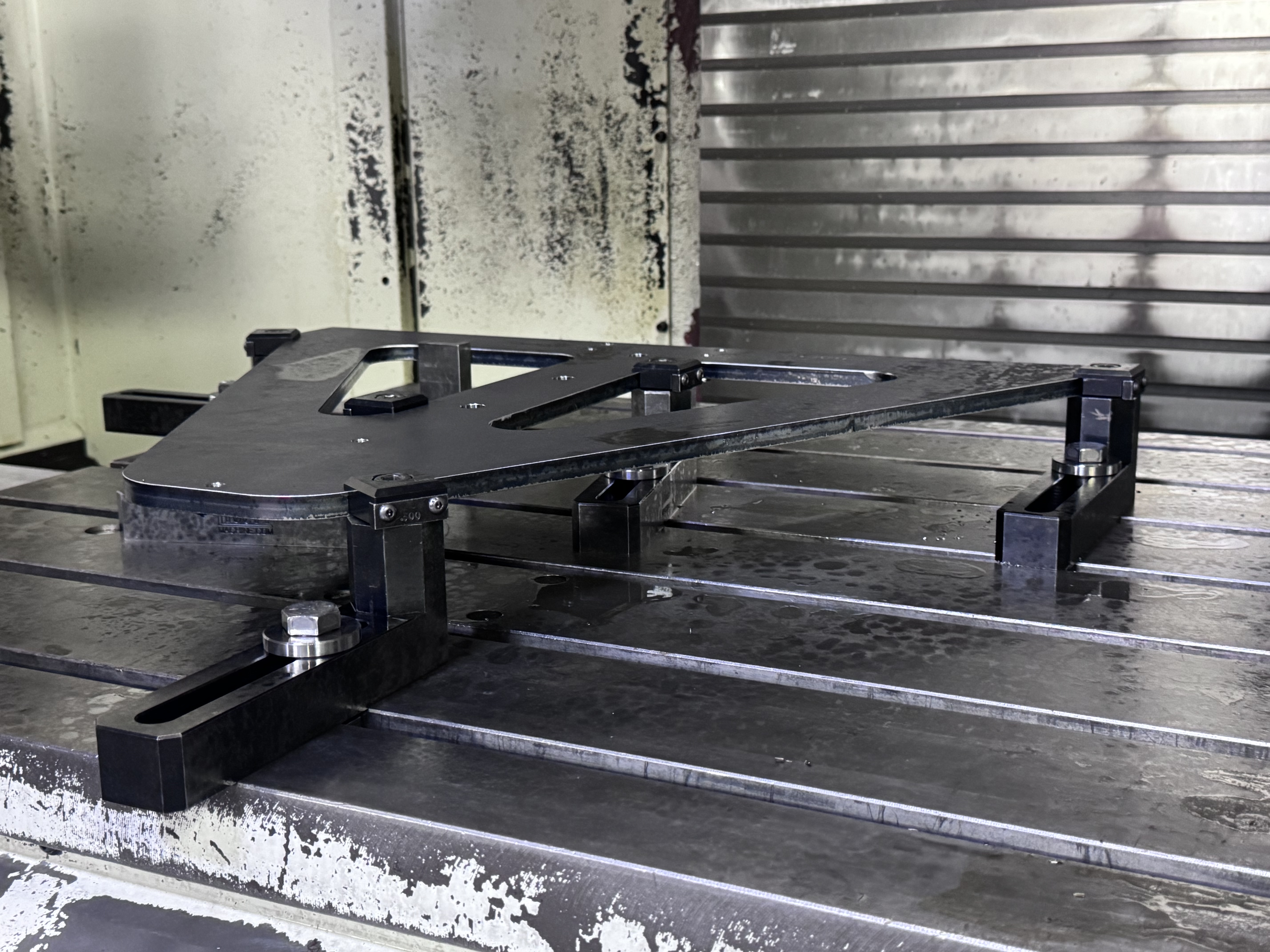

01
POSITION
Set the posts.
Choose the elevation points that support your workpiece and create clearance where you need it.
02
SECURE
Fixture the part.
Secure your workpiece using a modular configuration tailored to your machining application.
03
MACHINE
Cut with more access.
Reach more surfaces with fewer repositions and spend less time rebuilding setups.
04 / THE ADVANTAGE
LESS SETUP. MORE SPINDLE TIME.
Less repositioning. Less rework. More productive cutting time.
DISCUSS YOUR APPLICATIONReduce rework.
Fewer setups mean fewer opportunities for alignment errors.
Improve cutter access.
Elevate the workpiece to open previously restricted tool paths.
Save spindle time.
Reduce unnecessary setup work and get back to machining.
Adapt to the job.
Modular workholding for prototypes, repairs, and production.
THE BUSINESS CASE
LESS SETUP. MORE SPINDLE TIME.
Every minute spent shimming, repositioning, and re-indicating a part is time your spindle is not making chips. See what reducing setup time could mean for your shop.
01 / YOUR OPERATION
Calculate your potential savings.
Adjust the numbers to reflect your shop's actual machining operations.
02 / YOUR POTENTIAL
The value of your time.
ANNUAL HOURS RECOVERED
50
Potential setup hours saved per year
POTENTIAL ANNUAL CAPACITY VALUE
$6,250
Based on your hourly shop rate
THE CALCULATION
15 min × 4 setups × 50 weeks = 50 hours
Estimates are illustrative. Actual savings depend on your application, setup practices, and available machining work. Capacity value is not guaranteed revenue or profit.
05 / LET'S TALK WORKHOLDING
YOUR NEXT SETUP STARTS HERE.
Tell us what you're machining, where your current setup falls short, and what you need from your workholding.
01
Discuss your application
02
Explore system configurations
03
Request pricing or product information
DESIGNED BY MACHINISTS.
BUILT FOR PRODUCTION.
REQUEST INFORMATION
Tell us about your project.
Complete the form below and we'll get in touch.
